Challenges For Proton
By Jos Heyman, Senior Contributor



Following the somewhat spectacular failure of a Proton M/DM3 launch vehicle on July 2, 2013, the launch vehicle has been grounded pending an investigation into the cause.

An early analysis has suggested that the start occurred too early. This caused the control system to treat this as an emergency situation and started to divert the rocket away from the launch pad to a safe distance of a few kilometres from the launch site, just the way the control system was programmed to do.

The failure impacted on a number of Proton launches that had been scheduled for the remainder of the year: Astra-2E (late July 2013) as well as Sirius FM-6, Ekspress AM-5, Turksat-4A and a Russian military satellite.

As the only launch vehicle in the Russian inventory not derived from a military missile, the Proton launch vehicle was conceived by OKB-52 under V.N. Chelomei in the early 1960’s as a heavy two stage vehicle that could place large military payloads into orbit. With the demise of the OKB-52 in 1965, the design was taken over by Krunichev.

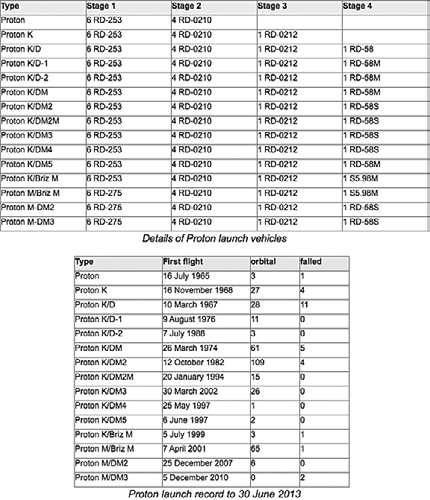

The basic Proton, which was also known as UR500, was a two stage vehicle that had a length of 32.10m and was capable of placing 8,400kg. into a low-Earth orbit. The first launch was on July 16, 1965.

The first development was a three stage version known as the Proton K that was introduced in 1968 and was intended to place the Almaz military space station in space and to also undertake manned circumlunar flights.

With the cancellation of those programs, the vehicle was used for the Salyut and Mir programs. The Proton K had a capacity for 19,760kg. payloads for placement into a low-Earth orbit and the vehicle remained in use until 2002.

The addition of a fourth upper stage was just a matter of time and, using the Block D upper stage developed by the Korolev design bureau, this resulted in the 55.40m Proton K/D, which made its first flight on March 10, 1967.

The Block D upper stage was initially developed for the lunar program and was also used for a number of interplanetary missions. This upper stage was originally planned for use with the N1 lunar launch vehicle, as well as the Energiya launch vehicle.

The Proton K was also matched with an improved D upper stage to create the Proton K/D-1 and the Proton K/D-2, the latter used for launching interplanetary spacecraft.

The Block DM upper stage was a further development and was used as an upper stage for the Proton K in several combinations.

The Proton K/DM version was used to place, among others, the Russian Ekran and Gorizont communications satellites in orbit, while the Proton K/DM2 version had a guidance system incorporated in the fourth stage and was used extensively to place Ekspress and Raduga communications satellites, as well as Iridium satellites, into orbit. The Proton K/DM2M was a further improved version.


A Proton K launch. Photo courtesy of Khrunichev Space Center.

The Proton K/DM3 was another version of the Proton K-DM2M, with the upper stage adapted to accommodate the FS-1300 satellite platform and similar payloads, whereas the Proton K/DM4 was a version optimized for the Hughes/Boeing 601 satellite. A Proton K/DM1 version, which was to be used with the Lockheed Martin AS4000 satellite platform, never reached flight status. Finally, the Proton K/DM5 was a version of the DM2M with an upper stage configuration to accommodate heavier payloads.

Another upper stage used with the Proton K was the Briz M that replaced the Block DM. The Briz M was constructed by Khrunichev and was a derivative of the Briz K that had been used with the Rokot small launch vehicle.

Eventually, the Proton K was replaced by the Proton M, which had different first stage engines. The Proton M was matched with the Briz M as well as the DM2 and DM3 upper stages.

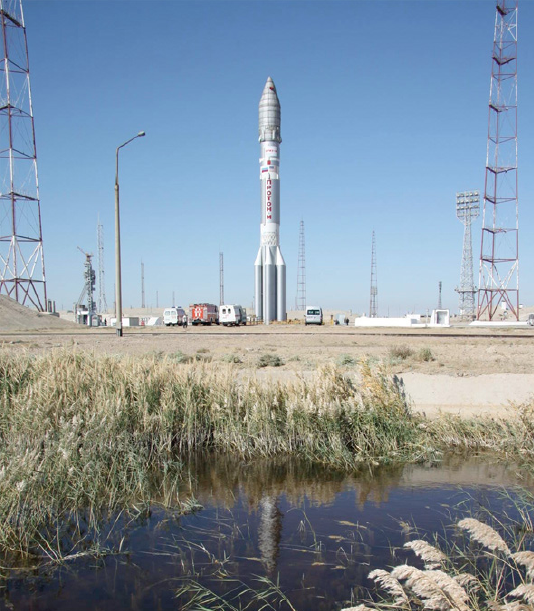

Proton-M launch vehicle and service tower. hoto courtesy of Krunichev Space Center

Between January 1, 2000, and June 30, 2013, there were 119 launches of the Proton (all versions), of which three were launch failures, two of which occurred since 2010.

During the same period of time, there were 155 launches of Krunichev’s other launch vehicle, the Soyuz (all versions), of which three were failures, with two occurring since 2010.

In comparison, during the same period, there were 63 launches of the Atlas launch vehicle (all versions) and 87 launches of the Delta launch vehicle (all versions), all without any failure—there were 65 Ariane 5 launches and 120 Long March (CZ) (all versions) launches, each suffering only one failure.

Being concerned about the image of the Russian space industry in the commercial launch market, the Russian government has ordered a high level investigation into the recent failure. It is understood that the investigation is not simply restricted to Krunichev’s engineering practices—the investigation will also extend to the management levels of the company.
